TFS WitAdminUI 2013 – Simple Wrapper Around the witadmin Command-line Tool

1 witadminui2013 TFS WitAdminUI 2013 is my simple wrapper around the witadmin command-line tool offering various features. It is available for download from CodePlex.

TFS WitAdminUI 2013 helps you by automatically generating commands based on the project collection and team project you are connected to. It allows you to preview generated commands with parameters for several witadmin actions, get help on those actions and execute them against the selected project collection and team project.

The underlying Witadmin tool is a command-line tool which comes with Visual Studio. As described in MSDN, “By using the witadmin command-line tool, you can create, delete, import, and export objects such as categories, global lists, global workflow, types of links, and types of work items. You can also permanently delete types of work item types, and you can delete, list, or change the attributes of fields in work item. As the following illustration shows, you manage categories and types of and work items for each team project. You manage global lists, types of links, and fields in work item for each team project collection. You can customize global workflow for a team project or a collection.”

2-witadmin msdn
When working on customizing a process template, you need to perform several witadmin actions multiple times, and since it is a command line tool, it gets pretty bothersome composing the long commands over and over again with poor support for copy-paste actions. TFS WitAdminUI 2013 helps you by automatically generating commands based on the project collection and team project you are connected to. It allows you to preview generated commands with parameters for several witadmin actions, get help on those actions and execute them against the selected project collection and team project.

Note: The application uses witadmin tool from Visual Studio 2013. It was not tested against earlier versions of Team Foundation Server, but it should work due to backward compatibility of the witadmin tool.
Note: The original code was taken from the CodePlex project TFS WitAdminUI, and it was refactored and extended.

Connecting to TFS

TFS WitAdminUI 2013 lets you connect to a Team Foundation Server 2013 of your choice at load time. You can later change this connection while the program is running by using the Connect button. All commands are executed in the context of the selected TFS connection.

Command Modes

There are 3 different Command Modes:

Generate Command Only
Generates the witadmin command-line with appropriate parameters and shows it in the Command edit box in the Execution group at the bottom of the window.
This mode does not execute any commands against TFS!

3 witadminui2013 - Generate Command Only
Execute Command
Generates the witadmin command-line with appropriate parameters and executes it against the selected project collection and team project.
The command is generated using the same code as in the Generate Command Only mode.
The result is displayed in the Result edit box in the Execution group at the bottom of the window.


4 witadminui2013 - Execute Command
Get Help On Command

Runs the command-line to get help on a particular action implemented in the application. (witadmin [action] /?).
The result is displayed in the Result edit box in the Execution group at the bottom of the window.


5 witadminui2013 - Get Help On Command



Project Level Actions

The tab Project Level Actions contains commands which are executed against a team project. You need to select the appropriate team project in the Projects list.


Work Items Types tab

Implements actions related to handling work item types:
  • Deletedestroywitd
  • Renamerenamewitd
  • Export to File exportwitd
  • Validate - importwitd /v
  • Import from File - importwitd
  • Import from XML - importwitd
All actions are executed against the work item type selected in the Work Item Type list.
When exporting, the path set under Export Folder in the Export/Import Files group is used. The file name is generated based on the work item type name. Additionally the exported file is loaded in the XML edit box.
When importing from file, the file from the Import File Path in the Export/Import Files group is used.
When importing from XML, the XML from the XML edit box is used.




6 witadminui2013 - Project Level Actions - Work Items Types tab
Destroy Work Item tab
Implements actions related to destroying work items (destroywi) from the selected collection and projects.
You can destroy work items by IDs you manually enter in the Id(s) edit box in the Destroy WIs by ID group.
You can destroy work items by selecting them from the list of work items in the Destroy WIs by Selection group.
Populate the list using the Get Work Item(s) button either from the selected team project (Only Selected Projects radio) or from all team project in the collection (All Projects radio). Use the Select All WIs, Unselect All WIs, Select n WIs buttons to adjust your selection.

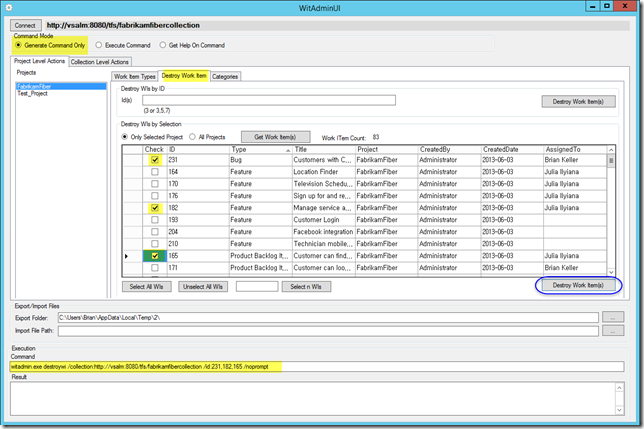

7 witadminui2013 - Project Level Actions - Destroy Work Item tab
Categories tab

Implements actions related to managing categories for the selected team project:
  • Export - exportcategories
  • Import - importcategories
When exporting, the path set under Export Folder in the Export/Import Files group is used. The file name is generated based on the team project name. Additionally the Exported file is loaded in the XML edit box.
When importing from file, the file from the Import File Path in the Export/Import Files group is used.
When importing from XML, the XML from the XML edit box is used.

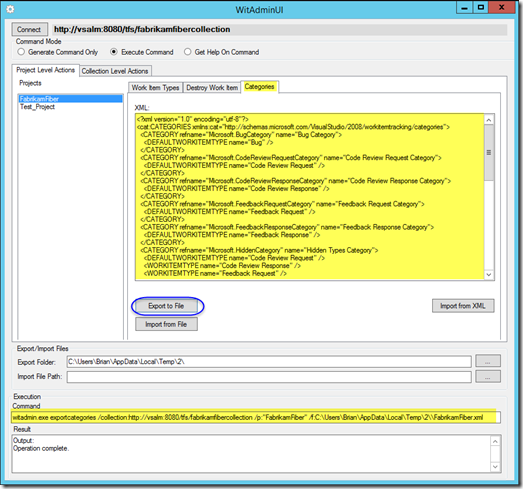

8 witadminui2013 - Project Level Actions - Categories tab

Collection Level Actions

The tab Collection Level Actions contains commands which are executed against the project collection you are connected to.
Fields tab

Implements actions related to handling work item fields in the selected project collection:
  • Index Onindexfield
  • Deletedeletefield
  • Change changefield


9 witadminui2013 - Collection Level Actions - Fields tab
Link Types tab
Implements actions related to managing link types in the selected project collection:
  • Deletedeletelinktype
  • Deactivate - deactivatelinktype
  • Reactivate – reactivatelinktype
  • Export to File - exportlinktype
  • Import from File - importlinktype
  • Import from XMLimportlinktype
When exporting, the path set under Export Folder in the Export/Import Files group is used. The file name is generated based on link type name. Additionally the exported file is loaded in the XML edit box.
When importing from file, the file from the Import File Path in the Export/Import Files group is used.
When importing from XML, the XML from the XML edit box is used.

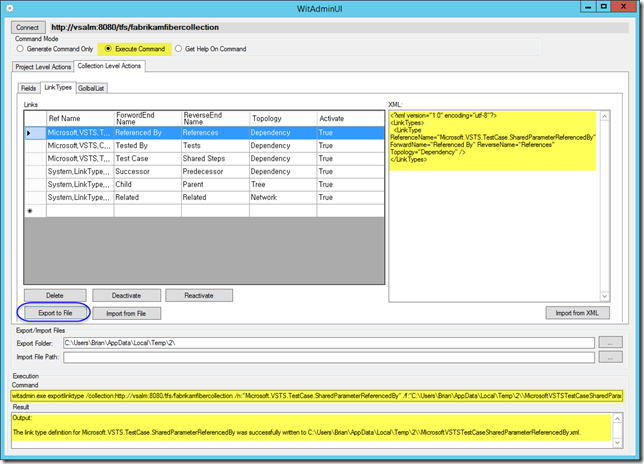

10 witadminui2013 - Collection Level Actions - Link Types tab
Global List tab

Implements actions related to managing global lists for the selected project collection:
  • Import from List - uses method WorkItemStore.ImportGlobalList
  • Destroydestroygloballist
  • Export to File - exportgloballist
  • Import from File - importgloballist
  • Import from XML - importgloballist
When exporting, the path set under Export Folder in the Export/Import Files group is used. The file name is generated based on the TFS server name and project collection name. Additionally the exported file is loaded in the XML edit box.
When importing from file, the file from the Import File Path in the Export/Import Files group is used.
When importing from XML, the XML from the XML edit box is used.
When importing from list, the XML for import is generated from the contents of the Global List tree. By right clicking on a particular tree node you get the options to Edit/Add/Delete that node. The XML imported to TFS is loaded in the XML edit box.

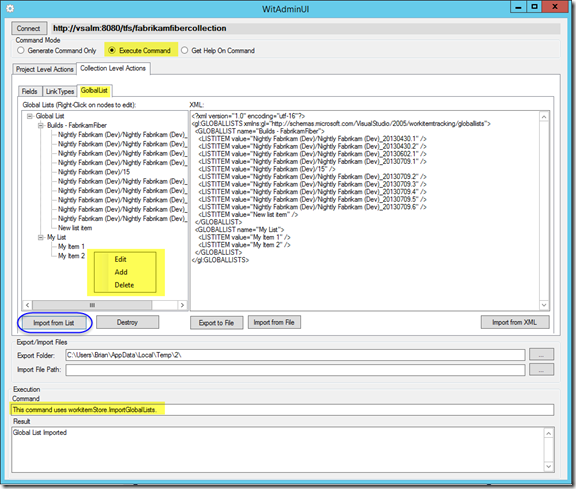

11 witadminui2013 - Collection Level Actions - Global List tab
